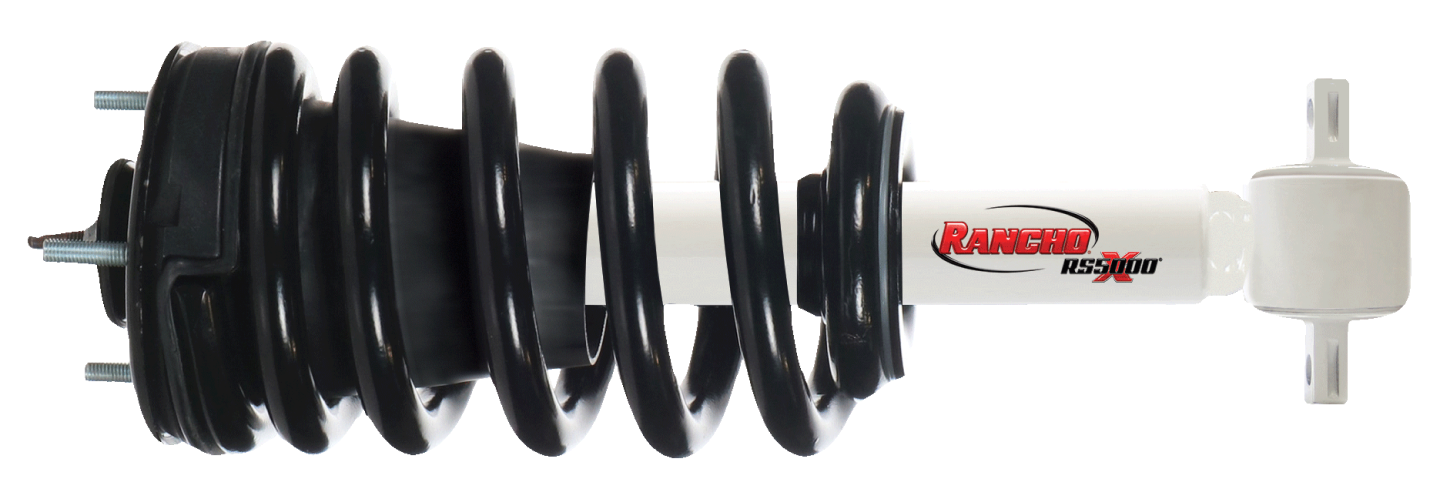

RS5000®X Loaded Strut Assemblies
An all-in-one solution for late model trucks and SUVs, a Rancho® RS5000®X loaded strut assembly restores the factory ride height and delivers improved on- and off-road handling thanks to Rancho’s exclusive Cross Tuned technology. This complete strut assembly simplifies installation by including all the required components in a single unit, on- and off-road ride tested and engineered to strict durability requirements.
Features & Benefits
IMPROVED HANDLING AND PERFORMANCE
Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
MINIMIZES ROUGH RIDE
Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
STRONG AND DURABLE
Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
HANDLES EXTREME TEMPERATURE CHANGES
Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
SMOOTH PERFORMANCE
Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
REDUCES FADE
Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
MAINTAINS VEHICLE CONTROL
Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
BUILT TO LAST
Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
BUY WITH CONFIDENCE
Comes with Rancho’s limited lifetime warranty
